Quickstart
Getting started with RADNAC
Get started quickly with our demo walk through configuration.
Once running, explore the follow up walk throughs to get your service production ready!
Note | The aim of this howto series of guides is to get you running a demo with minimal effort and incrementally improve the compliance side of the deployment. Before installing the service you intend to use, it is recommended you complete the series to understand the moving parts and then consult the detailed instructions when building your main service. |
Note | RADNAC is under preview so though you will not be charged and only the ‘Enterprise’ tier is available, important to note is that after ninety (90) days after you install the service it will deactivate and no longer process RADIUS requests. Please read our full preview notes for further details. |
Preflight: Checklist
Microsoft Azure account with an active subscription

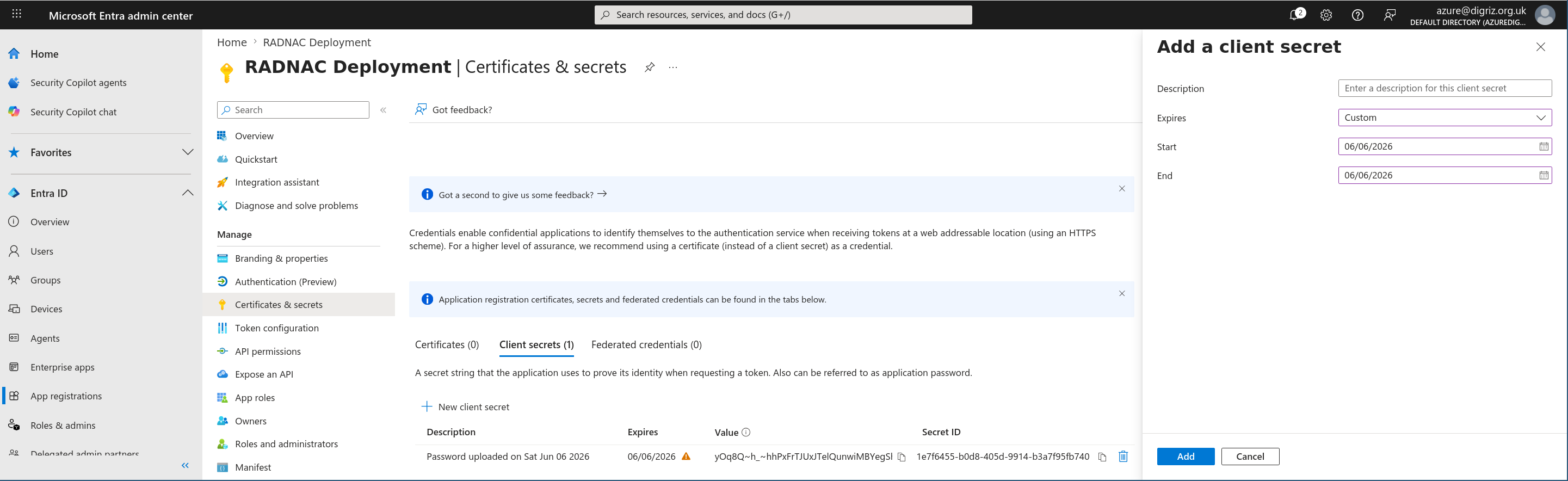

You will require at least the Contributor role for the subscription
Wireless equipment supporting ‘WPA Enterprise’ (maybe labeled as ‘802.1X’) networking
It is strongly recommended that you use equipment supporting RadSec to improve reliability and privacy
The example provided describes how to configure Ubiquiti’s wireless equipment using their UniFi service as they are the only vendor offering out of the box support for both ‘WPA Enterprise’ and ‘RadSec’ at a price that is accessible to small scale deployments. If you know of others, and better still can offer instructions, please do get in touch so we may add them here.
NoteUbiquiti limit their access points so that you are unable to use WPA Enterprise without a UniFi controller TipIf you do not wish to self-host a UniFi controller, Ubiquiti are not the only ones offering a hosted solution and there are other vendors that include Cloud UniFi and Uniquely Cloud; these are not endorsed services (internally we self host) but instead are provided as suggestions to start you looking for a solution that works for you. Other known suitable vendors you can use with RADNAC:
MikroTik: Suitable for more technically minded system and/or network administrators
Offering WPA Enterprise but not RadSec:
TP-Link - in particular their Omada product line
Internet connection
Strongly recommended is to have a static (fixed) IP address, ask your ISP if you are unsure
Steps
What we will be covering in this howto is:
Installing from Marketplace
Adding a device to RADNAC
Creating a user in RADNAC
Installing the demo server certificate in RADNAC
Configuring your wireless equipment
Doing your first WPA Enterprise (802.1X) wireless authentication
Examining the logs
Installing from the Marketplace
Go to the RADNAC Marketplace page
Alternatively go to the Azure Marketplace, search for ‘RADNAC’ and make sure the publisher listed for the offer is ‘coreMem Limited’
Click on it and you will be presented with the option to:
Pick the subscription to install the service to
Select the ‘Enterprise’ (without support) plan
You may choose the plan with support only with instruction from ourselves as it allows coreMem Limited access to your deployment but be aware that this should only be done if you need
Click on Create to begin the installation Wizard
Tip | Throughout the wizard, many fields provide a small information icon that you may hover over to get more information on how it affects the deployment. |

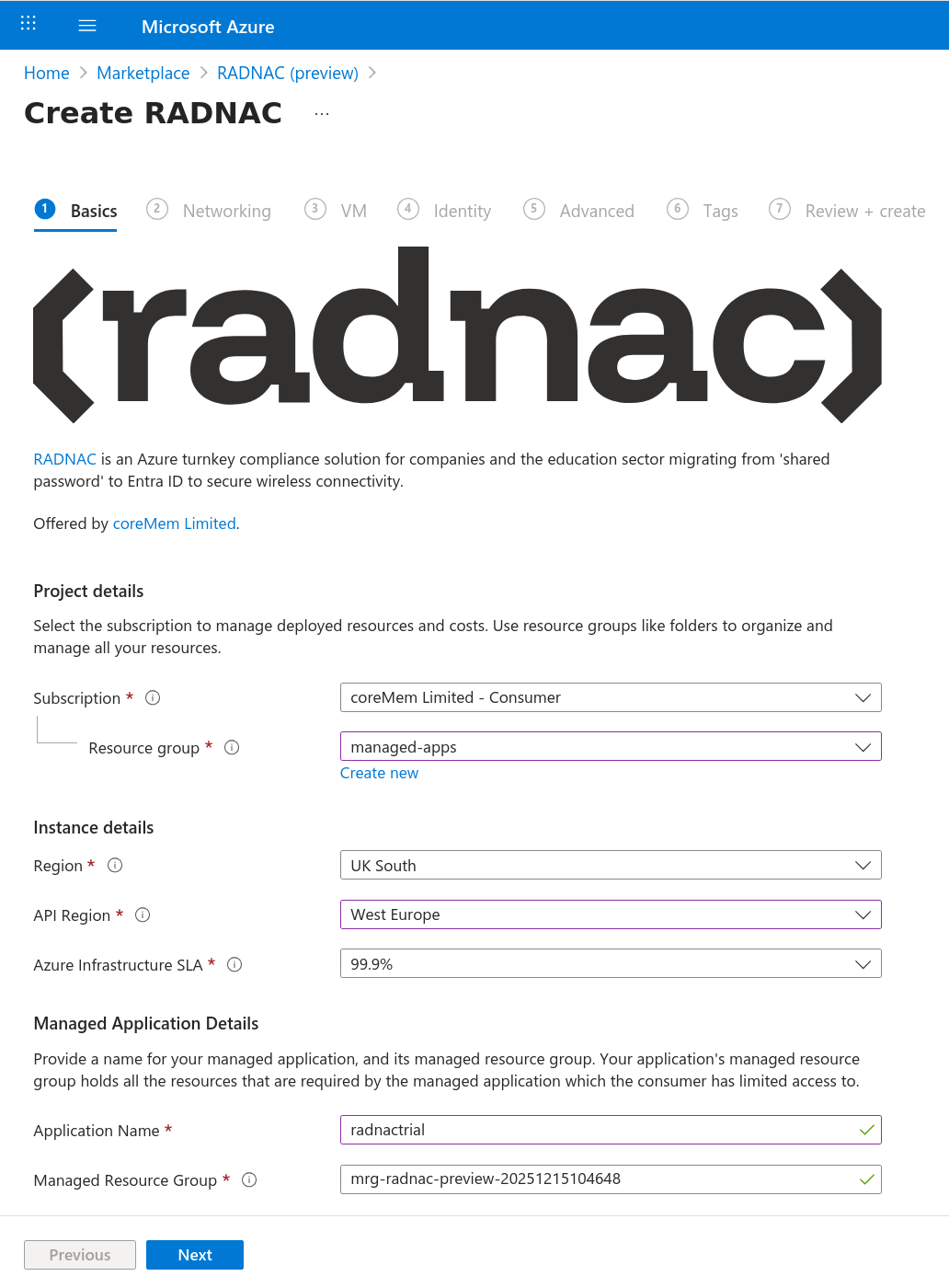

For the first step (labeled ‘Basics’):
Verify the correct subscription you want to use is selected
If you see a warning about unregistered ‘Resource Providers’, check the box ‘Register Resource Providers’
Select the ‘Resource Group’ to install the managed application to, this is where you interact with RADNAC
Select a ‘Region’ (and ‘API Region’) near to your location (where you want your data stored)
Set the ‘Application Name’, the name that will be used for the resource created in the ‘Resource Group’ provided above, to the value ‘radnacdemo’
Leave all other fields at their defaults
Click the Next button at the bottom left to move to the next section

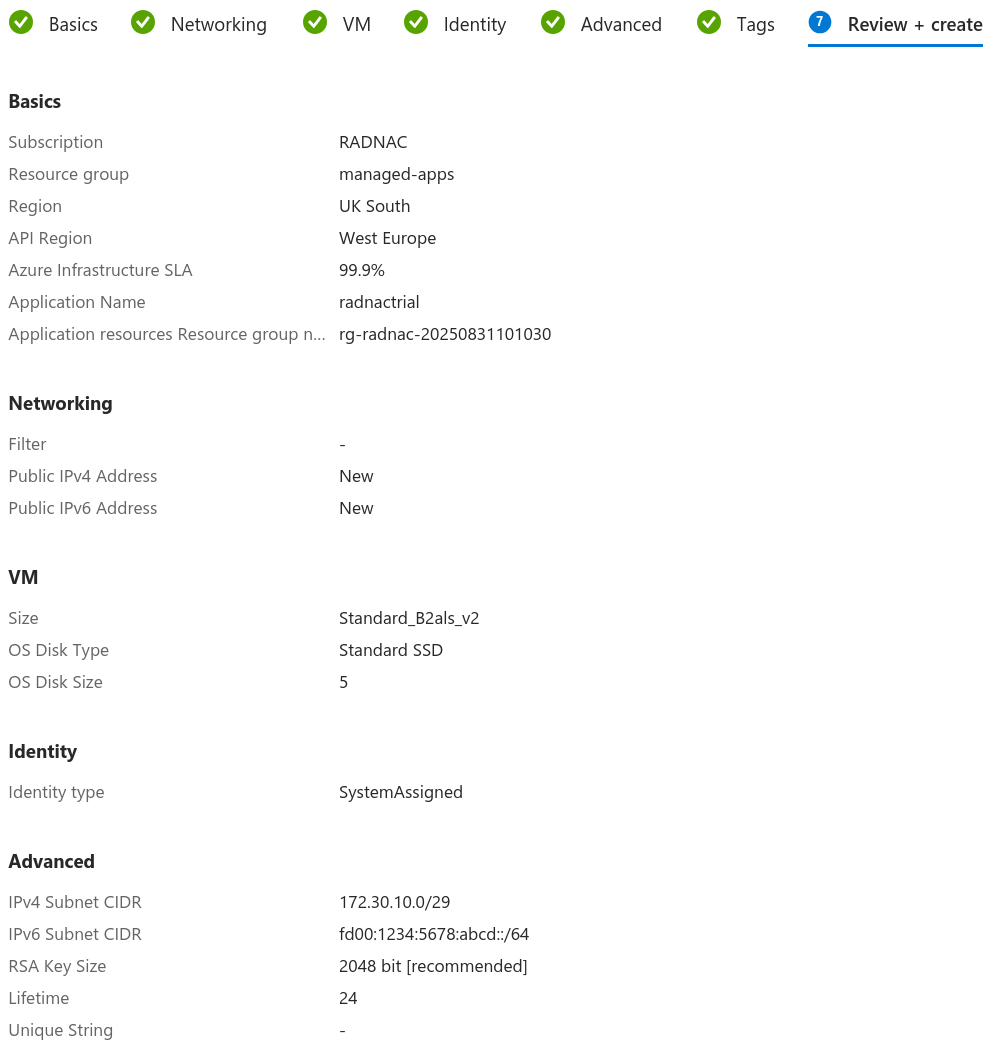

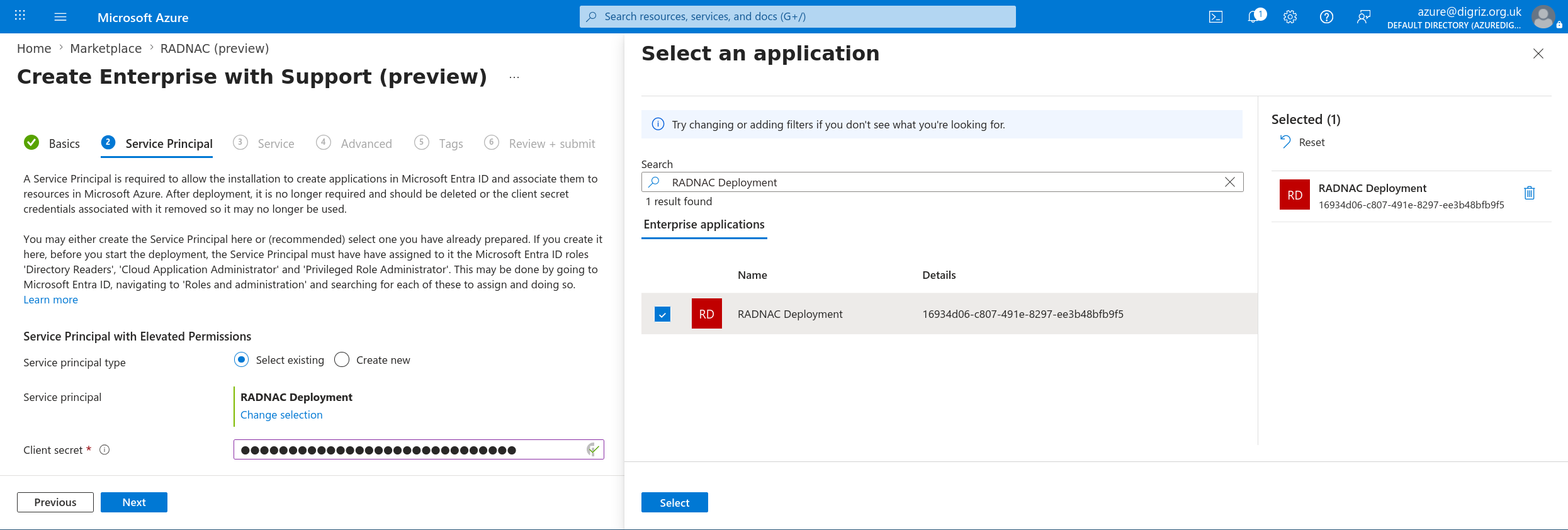

For all the remaining steps leave the fields at their defaults, clicking the Next button at the bottom left to move to the next section until you reach ‘Review + submit’ where you click on the Create button at the bottom left to begin the deployment process.

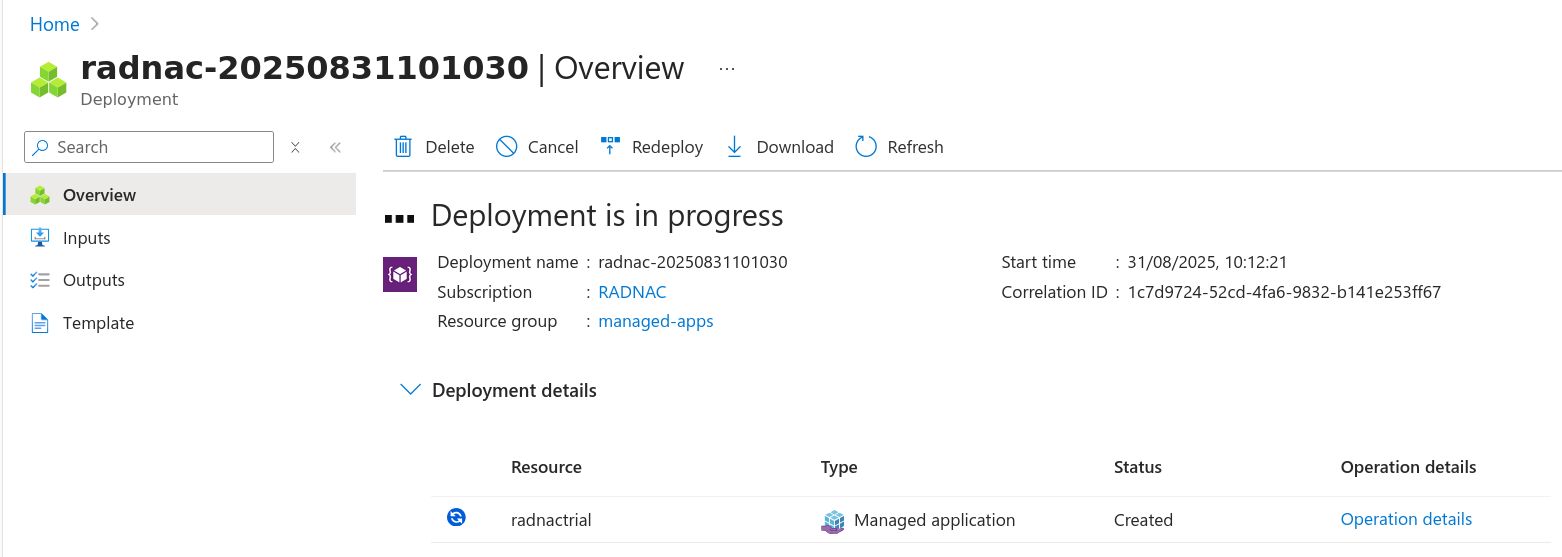

Deployment
This process typically takes less than ten (10) minutes, though depending on how busy your selected Azure location is, it may take upward of thirty (30) minutes to complete, once it completes you should see something that looks like the following which is when you should click on the Go to resource button.

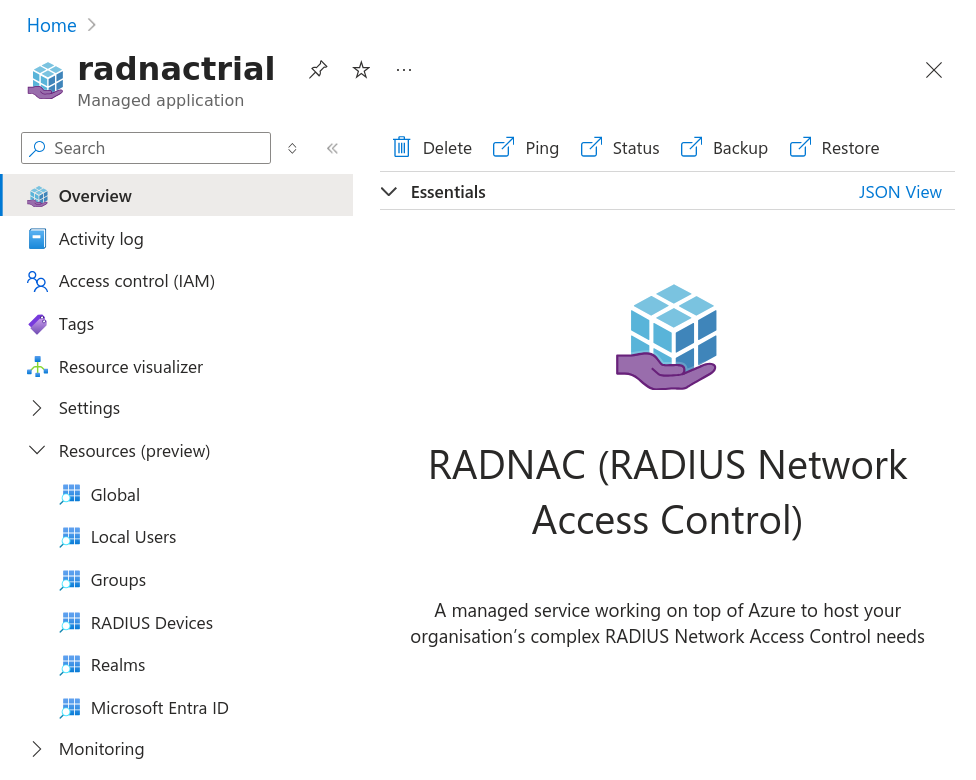

From here you should see ‘radnacdemo’ and upon clicking on it you will be presented with the primary user interface that you interact with RADNAC from, we will refer to this page as the ‘managed application’ page throughout the rest of this howto.
The main text content found slightly to the bottom right provides an overview of where to find things and links to the product page and its documentation.
Adding a device to RADNAC
For this step you will need the public IP addresses that your Internet connection is assigned.
If you do not know them ask your ISP otherwise look to the sub-section below titled Discovering your Public IP Address(es).
If they are not static IP addresses (ie. ‘dynamic’) or you do not know, then look to the subsection below titled Dynamic Public IP Address(es).
From the managed application page navigate the menu on the left and click on the Add button at the top to start the wizard. For the values provide a name for your wireless equipment (eg. wifi), add your public IP address(es) comma separated into the ‘IP Addresses’ box and leave at their defaults ‘Intranet’ (enabled) and ‘Roles’ (‘Client’ only). Now click on the Next button at the bottom of the page. Review the configuration and then click on the Submit button.

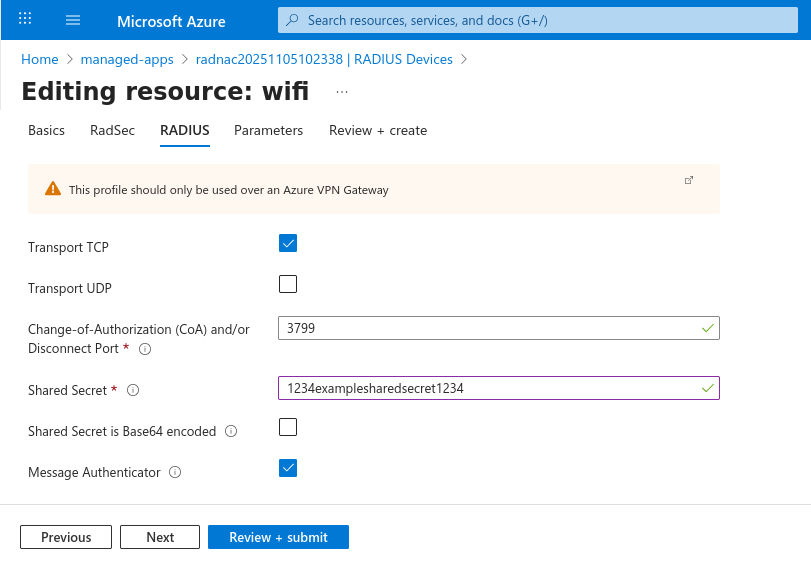

You should now see your newly created device edit, tick the checkbox to the left of it and click on the Edit button (found next to the Add button you used before) and navigate to the ‘RADIUS’ tab. From here, check the ‘Transport UDP’ checkbox, set ‘Shared Secret’ to an unguessable value and leave the other fields at their defaults (‘Shared Secret is Base64 encoded’ unchecked, ‘Message Authenticator’ checked, …). Now click on the Next button at the bottom of the page until you reach the ‘Review + create’ section and lastly click on the Submit button.
Discovering your Public IP Address(es)
You should be able to obtain what your public IP address(es) are from your ISP or the materials they provided to you when you signed up with them.
If not, they should match the ones your computer and mobile devices use when connected to your existing wireless network service so you infer them from an online IP reporting tool from your web browser.
On this page, you will need to make a note of both the IPv4 and IPv6 addresses shown.
Note | It is okay if only one of the two IP addresses (often the IPv6 address) is not listed. This is due to a limitation of your ISP (or router) though fortunately not something most users would be aware of. |
If you have dynamic public IP address(es), or are unsure, go to the next section otherwise use these found values to configure RADNAC as per the instructions above.
Dynamic Public IP Address(es)
If you have only a dynamic public IP address(es), or do not know so assume they are, you will need to use an online tool from your browser to create a usable approximation for your address(es) in CIDR notation.
Warning | If your wireless equipment does not support RadSec or your router or an on-premise VPN appliance does not support making a VPN connection to Azure, it is strongly recommended you use an ISP that provides you with ‘static (fixed) IP addresses’. Where this is the case, and you still plan to use dynamic IPs (common for non-business tier ISP services) when your router reconnects to the Internet your public IP address(es) will change and the effect will be that your wireless network will stop working until you update the device IPs configuration made above with the new addresses. For those where RadSec or a VPN is an available option to you, a later guide will walk you through implementing a more resilient (and secure) configuration suitable for use with dynamic public IP address(es). |

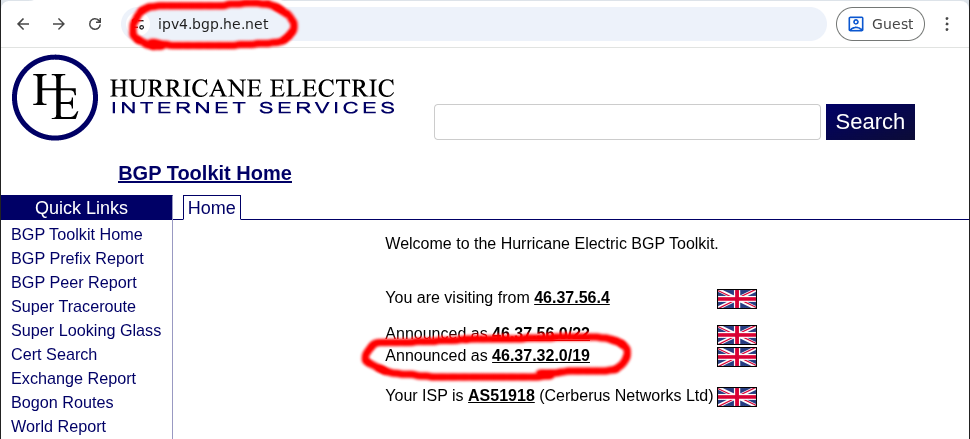

If you have an IPv4 address, then open https://ipv4.bgp.he.net/ and capture the bottom most ‘Announced’ listed CIDR:

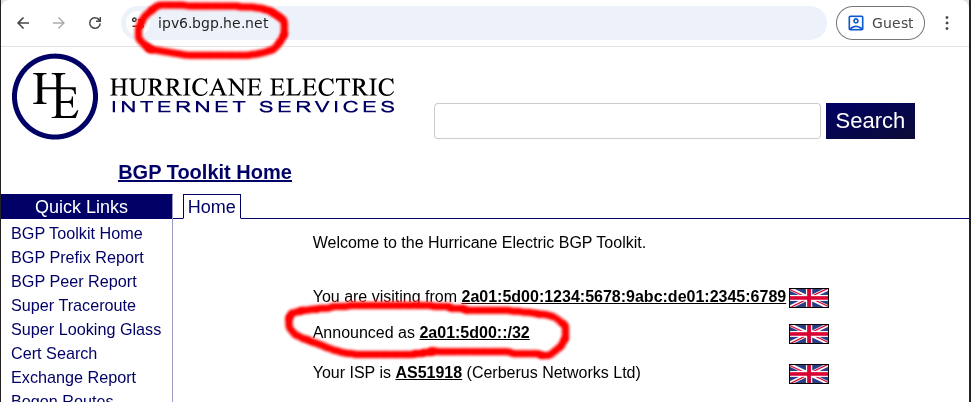

If you have an IPv6 address, then open https://ipv6.bgp.he.net/ and capture the bottom most ‘Announced’ listed CIDR:

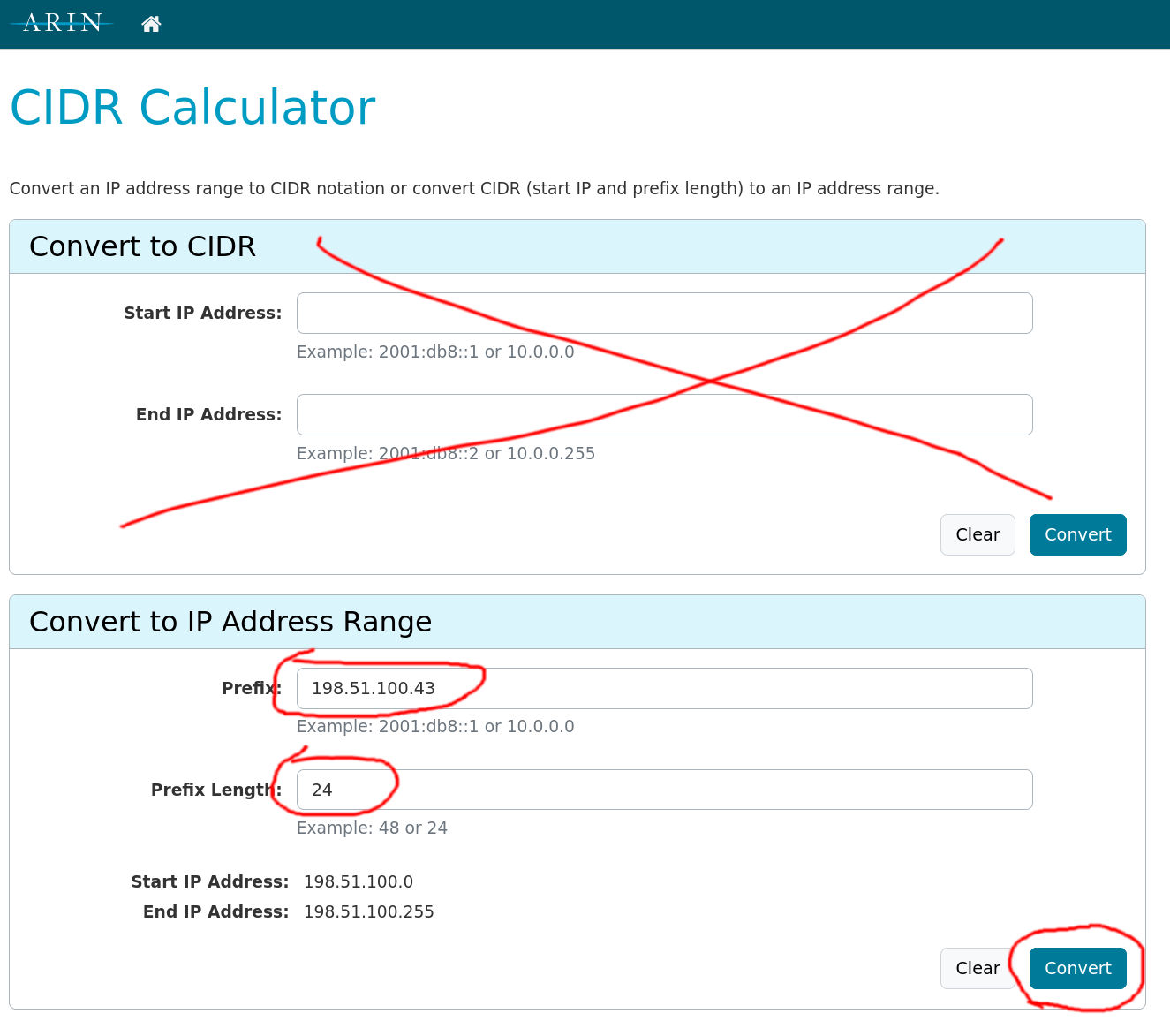

Now use these obtained CIDR’s to configure RADNAC as per the instructions above.
Warning | These CIDRs are approximations and only suitable only for the purpose of the demo. |
Creating a user in RADNAC
From the managed application page navigate the menu on the left and click on the Add button at the top to start the wizard. For the values provide a username (eg. ‘bob’) and password (eg. ‘hello’).
Warning | Do not use any existing passwords known to you here. This demo aims to allow you to get RADNAC running as quickly as possible and a later guide will walk you though securing how your passwords are transmitted (the ‘S(ecure)’ in ‘HTTPS’. |
Now click the Next button at the bottom left of the page, review your changes and then click on the Submit button.
Installing the demo server certificate in RADNAC
There two parts to this step:
Create an Azure Key Vault, grant yourself and RADNAC permission to use it and import the demo server certificate
Configure RADNAC to use the demo server certificate
Creating an Azure Key Vault
In the main Azure Portal, navigate to ‘Resource groups’ by typing into the search box at the top ‘resource groups’ and clicking on it.
Create a new resource group by clicking on the Create button at the top, provide the name ‘radnacmisc’ (for the purpose of this demo) then click on the Review + create button at the bottom and after reviewing, click on the Create button at the bottom.
Once the resource group has been created (you may need to click the Refresh button at the top), now either:
Directly navigating to the create Azure Key Vault wizard.
Manually locating the Key Vault creation wizard by:
Clicking on your newly created resource group (you may need to click the Refresh button at the top) and from within it, click on the Create at the top of the pane that opened.
You will be taken to the Azure Marketplace where you search for ‘key vault’, press the Enter and then check the checkbox ‘Azure services only’.
Find the item listed as ‘Key Vault’ by Microsoft (should be the first item) and click on it.

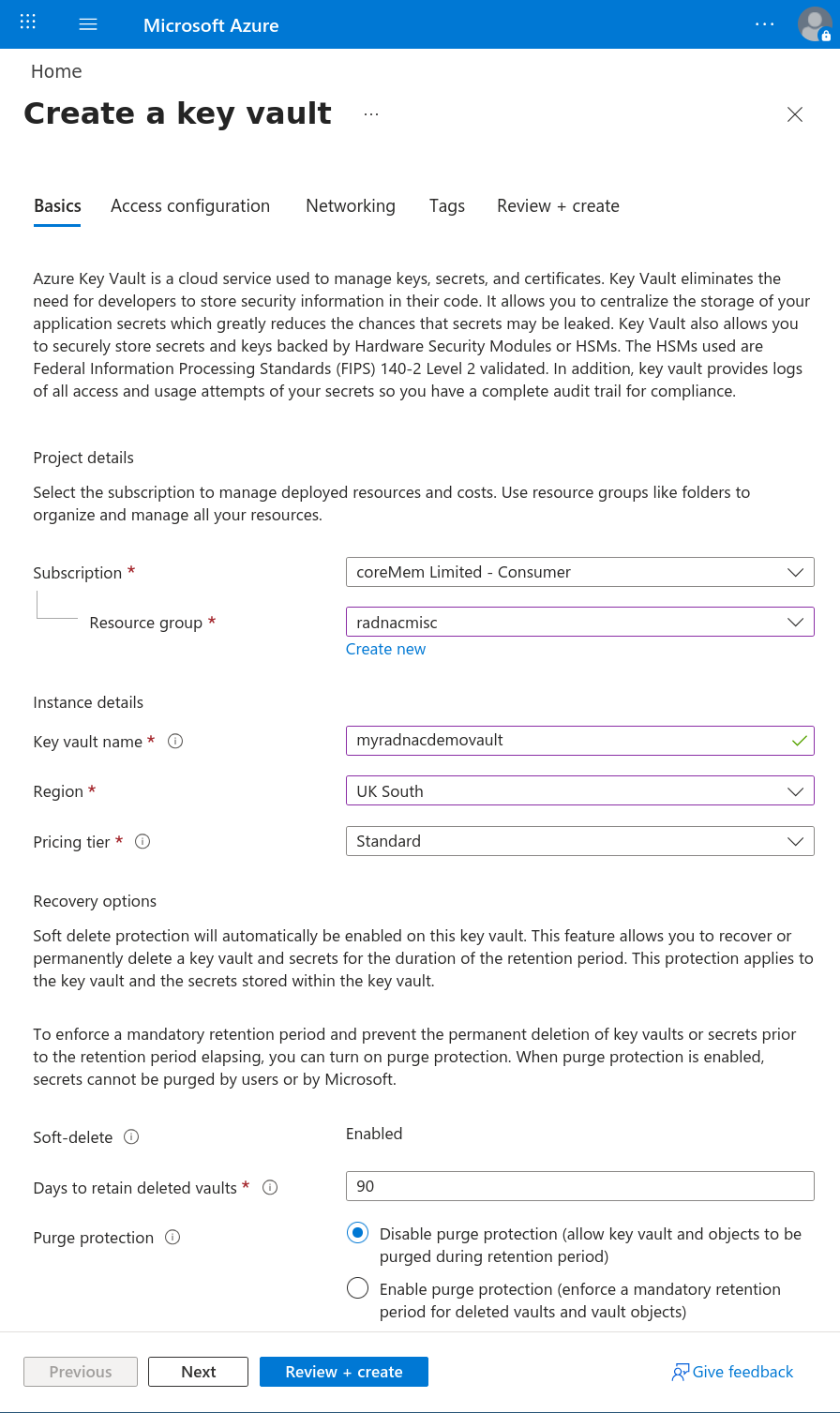

On the overview page you are presented with, click on the Create button.
In the wizard, select your newly created resource group to deploy the Key Vault to, provide it a name, a region close to you and leave all other fields left at their defaults (eg. ‘Pricing tier’ at ‘Standard’, ‘Days to retain deleted vaults’ at 90 days, …) and click on the Review + create button at the bottom.
On the ‘Review + create’ step, click on the Create button, wait for the Key Vault to be deployed and then click on the Go to resource button.
To grant access to the Key Vault, you will need navigate to on the left hand menu to open the add role wizard
NoteIf you do not have ‘Key Vault Contributor’ (or ‘Owner’ or ‘User Access Administrator’) access you will need to seek assistance from your IT administrator to complete the rest of this section Select and then in the Members menu tab, for ‘Assign access to’ select the User, group, or service principal radio button, and under the Members menu select yourself, then Review + assign at the bottom of the page
Repeat the add role wizard, though this time select and then in the Members menu tab, for ‘Assign access to’ select the ‘Managed identity’ radio button, and under the Members menu select and choose
radnacdemo, then Review + assign at the bottom of the page on, and under the Members menu select yourself, then Review + assign at the bottom of the pageDownload the demo server certificate.

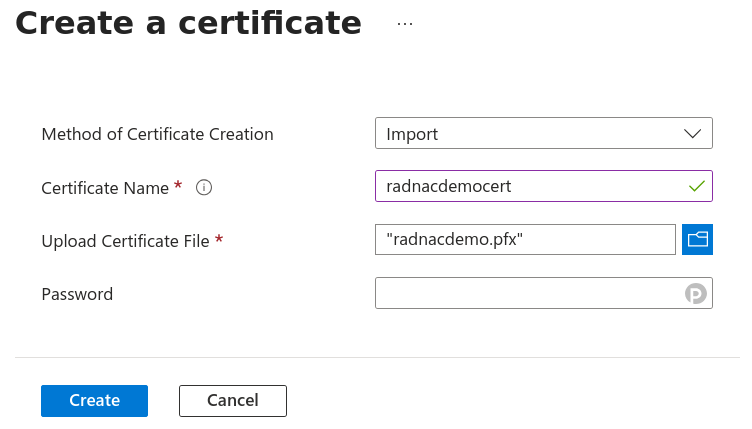

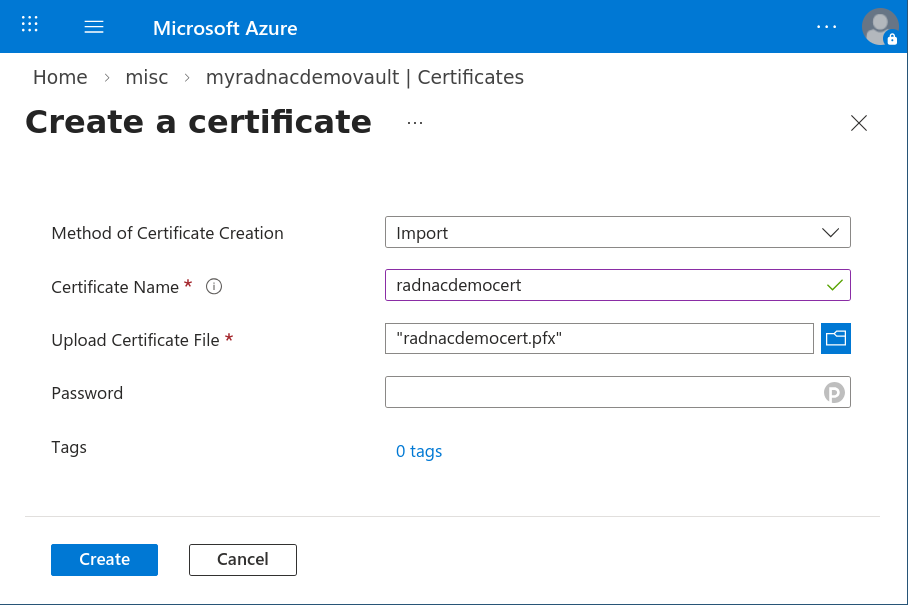

Navigate to the certificate importing wizards by click through the menu
Select ‘Import’ from the ‘Method of Certificate Creation’ dropdown, set the ‘Certificate Name’ to ‘radnacdemocert’, upload the downloaded
radnacdemocert.pfxcertificate from above, leave the ‘Password’ field blank and then click on the Create button
Using the server certificate

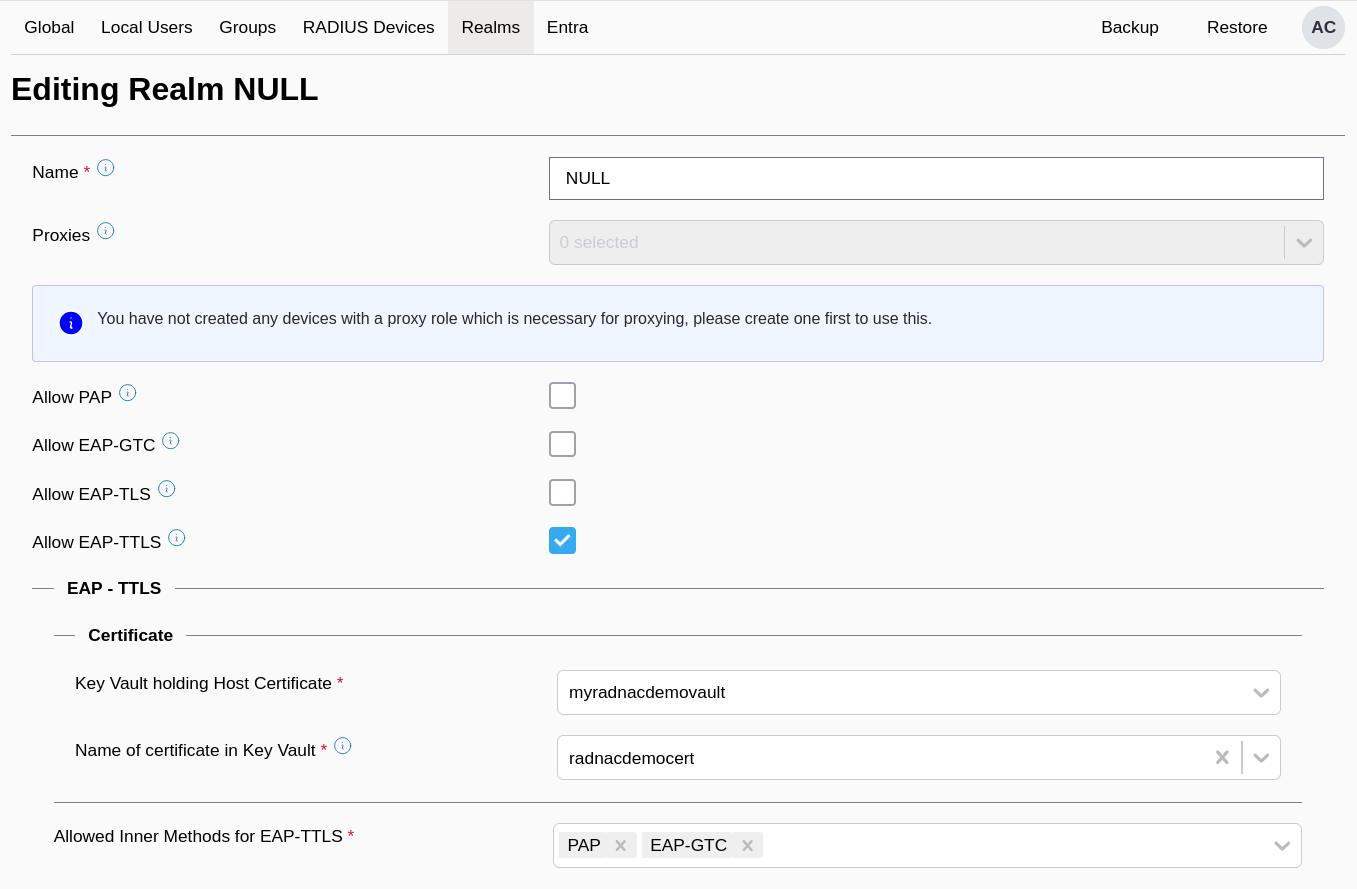

From the managed application page navigate the menu on the left , check the ‘NULL’ entry and click on the Edit button at the top
From the wizard that opens:
Check the ‘Allow EAP-TTLS’ option
From the ‘Key Vault holding Host Certificate’ dropdown select the key vault you created above and for ‘Name of certificate in Key Vault’ type in ‘radnacdemocert’
For the ‘Allowed Inner Methods for EAP-TTLS’ leave at its default of both ‘PAP’ and ‘EAP-GTC’ being checked
WarningIt is important to include ‘EAP-GTC’ to support automatic device configuration when using macOS and iOS
Click on the Review + submit button at the bottom and then from the review page click on the Submit button
You should now see “Methods allowed EAP-TTLS[Using 'radnacdemocert' from the Key Vault '(yourkeyvault)']/{PAP,EAP-GTC}” display for the ‘NULL’ realm, and status reported as ‘EAP-TTLS: OK’ with no action being required image::howto/secure-auth/realm-configured.png[Realm ‘NULL’ correctly configured with the demo server certificate,width=640]
Configuring your wireless equipment
For this we need the IP addresses RADNAC provides for the service. To obtain these go to the managed application page and navigate the menu on the right and listed at the bottom, under the ‘Outputs’ section, are the values we need (your values will be different):
‘primaryIPv4’: our example will use the value ‘
203.0.113.14’‘primaryIPv6’: our example will use the value ‘
2001:db8:1016:2::1fe’
Note | The values for ‘secondaryIPv4’ and ‘secondaryIPv6’ will be blank as for the demo only a single service instance was created |
Open a new browser window to the administrative management page for your wireless equipment.
Note | Every vendor is different, so if you are not using Ubiquiti’s equipment, you likely will have to read the documentation or seek support for your existing wireless equipment. Fortunately searching for ‘WPA Enterprise’ and ‘RADIUS’ in your instructions will get you close to what you need, then you hopefully will just need to copy values found here into the user interface of your equipment. |

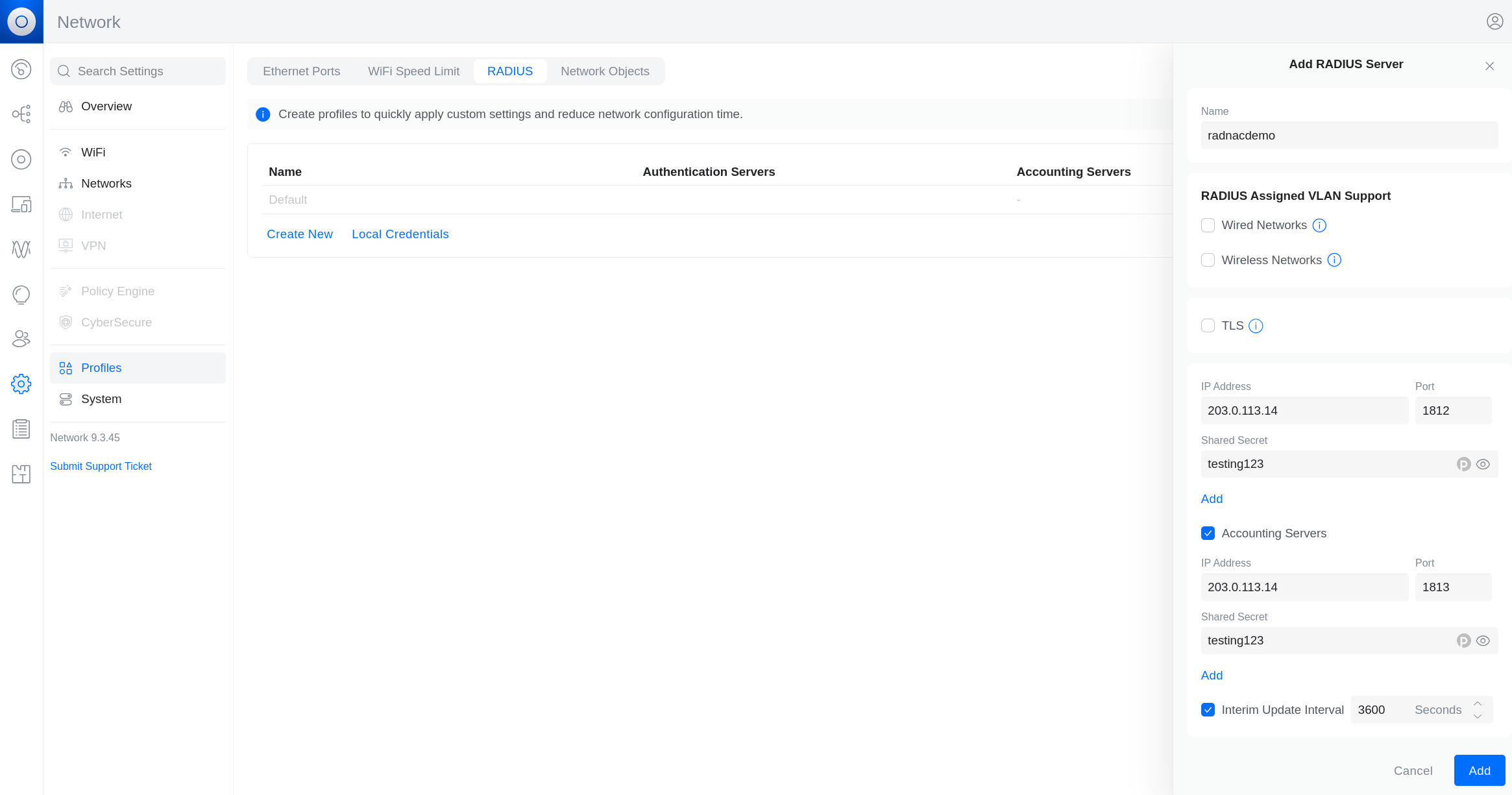

In Ubiquiti’s user interface, you need to navigate the menu , scroll to the ‘RADIUS’ section of the page and then click ‘Create New’.
In the right side bar panel titled ‘Add RADIUS Server’, fill in the fields with name set to ‘radnacradius’, leave the VLAN (Wired and Wireless networks) and TLS checkboxes unchecked, type in the ‘primaryIPv4’ from above as the ‘IP Address’, leave ‘Port’ set to its default (1812) and type in the shared secret you used when adding a device to RADNAC earlier. Now click on the `Add’ immediately below the shared secret textbox.
Note | We will not use the ‘primaryIPv6’ field as the UniFi equipment does not support it |
Check the ‘Accounting’ checkbox and similarly as above add the ‘IP Address’, leave ‘Port’ set to its default (1813), type in the shared secret and click on the `Add’ immediately below the shared secret textbox.
Lastly check ‘Interim Update Interval’, but change the time period to 300 seconds. Now click on the Add button at the bottom of the right side panel.
Now we will create a new wireless network for your mobile phone to connect to. Navigate the menu and click on ‘Create New’ found near the top. Set the fields as:
Name:
radnacwifiNetwork: Native Network
Advanced: Manual
Security Protocol: WPA2 Enterprise
RADIUS Profile:
radnacradius
Leave all other fields at their defaults and click on the Add WiFi Network button at the bottom.
Connecting using WPA Enterprise (802.1X)
Finally it is time to connect to your new wireless network.
Android
Open the wireless settings page by either
Long press holding the wireless tile
Navigate to
After a few moments your phone should show the ‘radnacwifi’ wireless network from the list of available networks
Tap on the ‘radnacwifi’ entry

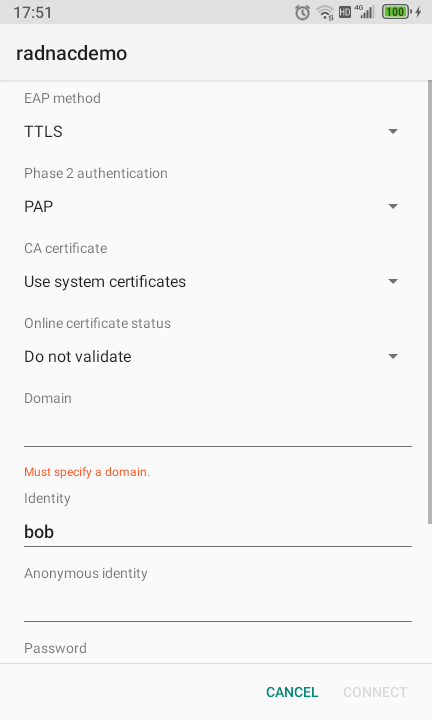

A configuration dialog will open where you should set:
- EAP method
TTLS
- Phase 2 authentication
PAP
- CA certificate
Select ‘Trust on First Use’ (Android 13 or later) or if not an option use ‘None’ (Android 12) or ‘Do not validate’ (Android 11 and earlier)
NoteIn a later guide we describe how to secure this but for the purpose reducing friction in our demo we are skipping this for now. - Identity
Type in the username of the user you created in RADNAC (eg. ‘bob’)
- Password
Set to the password of the user you created in RADNAC (eg. ‘hello’)
Leave all other fields at their default values
Click on the Connect button at the bottom

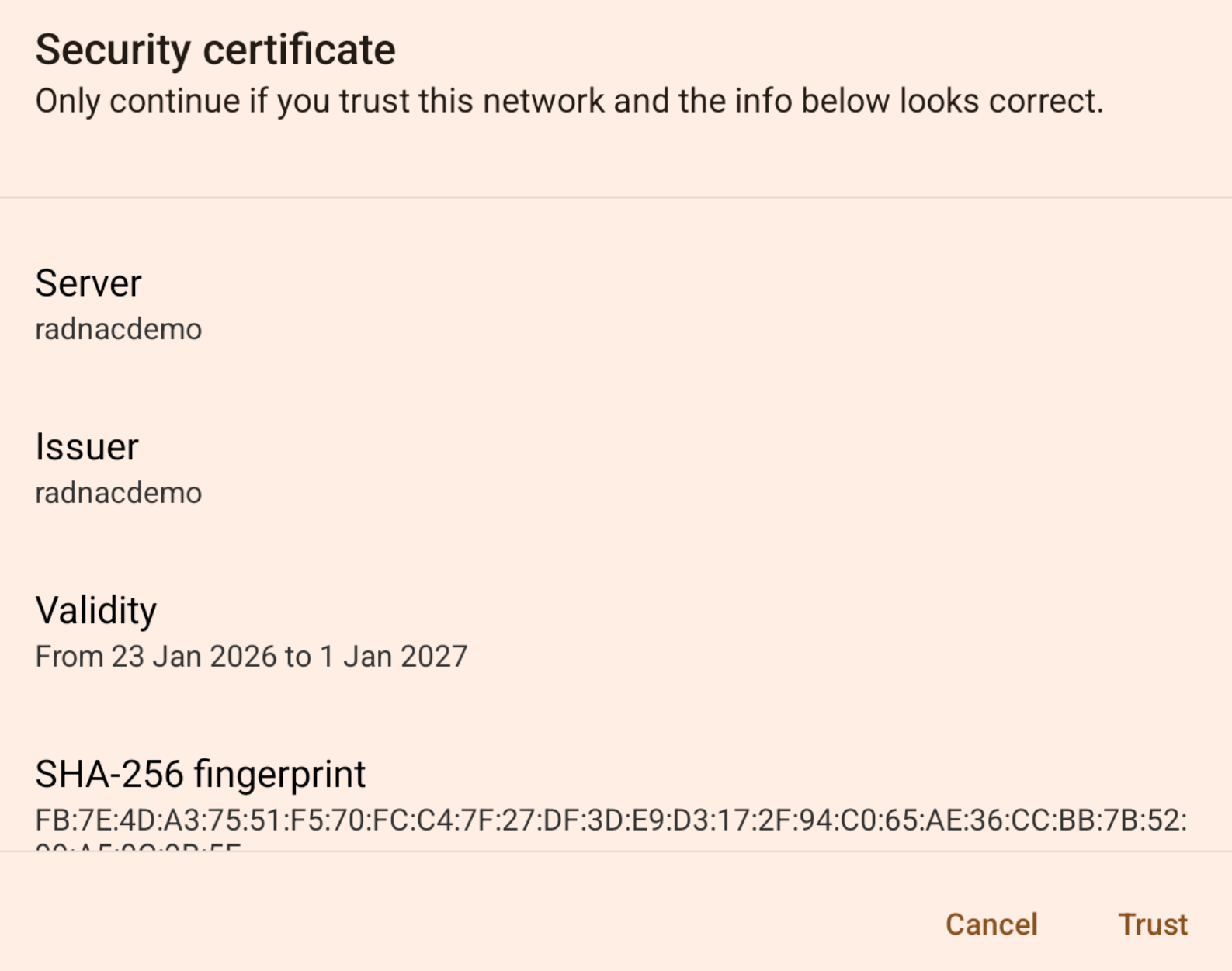

If using Android 13, you may be prompted to confirm that you trust the network, it should show ‘radnacdemo’ and you should click on ‘Yes, connect’
You should now be connected
Apple iOS
Open the wireless settings page by going to
Tap on your new wireless network ‘radnacwifi’

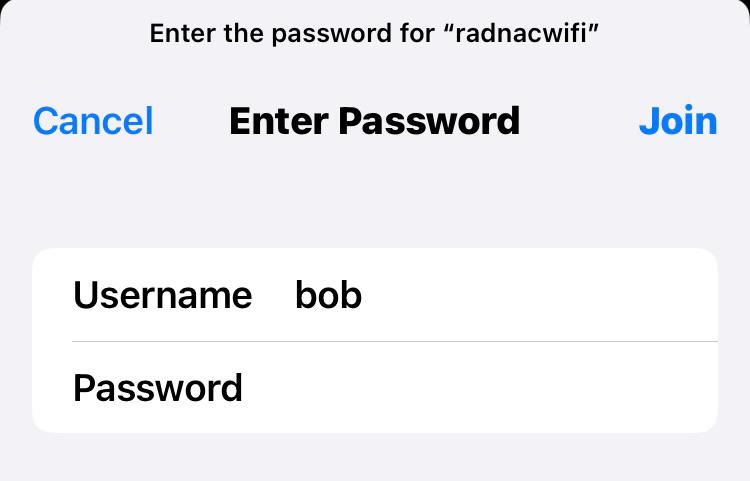

You will be prompted for a username (eg. ‘bob’) and password (eg. ‘hello’), use the values for the user you created above in RADNAC
Tap on ‘Join’ in the top right

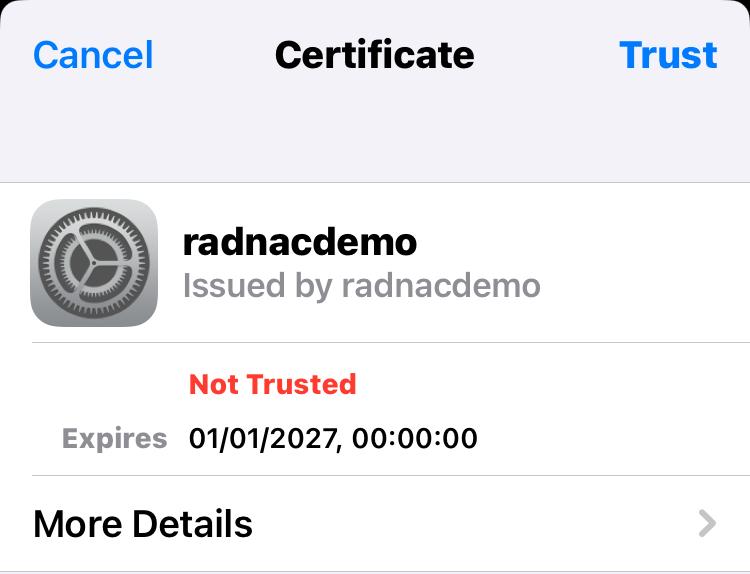

You will be presented with a dialog asking you if you trust the ‘radnacdemo’ certificate, which you should tap ‘Trust’ in the top right
You should now be connected
Microsoft Windows 11
Open the wireless networks listing by clicking on the wireless icon in the bottom

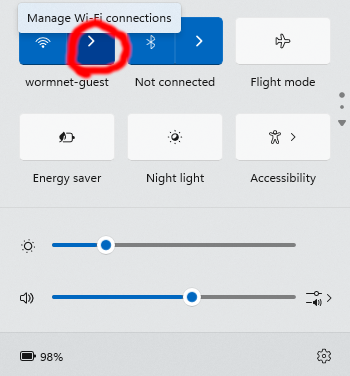

Click on the right chevron (‘>’) to access
'Manage Wi-Fi connections'
Click on ‘radnacwifi’ and then on ‘Connect’

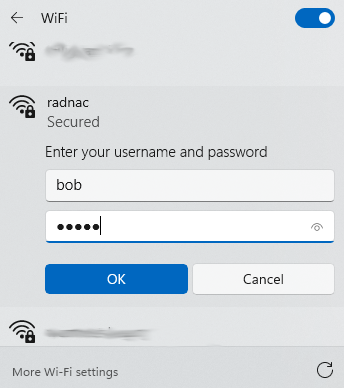

You will be prompted for a username (eg. ‘bob’) and password (eg. ‘hello’), use the values for the user you created above in RADNAC
Click on ‘OK’

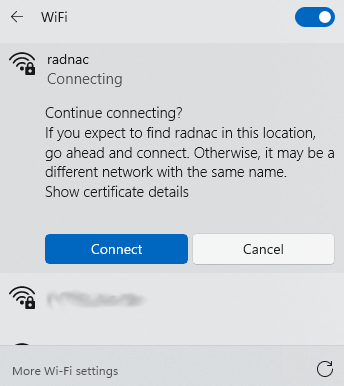

You will be presented with a dialog asking you if you trust the network and optionally review the certificate details, click on ‘Connect’
You should now be connected
Examining the logs
To see the logs of your login:
Go to the managed application page and click on the linked next to the ‘Managed resource group’ near the top right of the page.
Click on the ‘appiservice’ resource, this is where you interact with the logs of the service and understand its usage

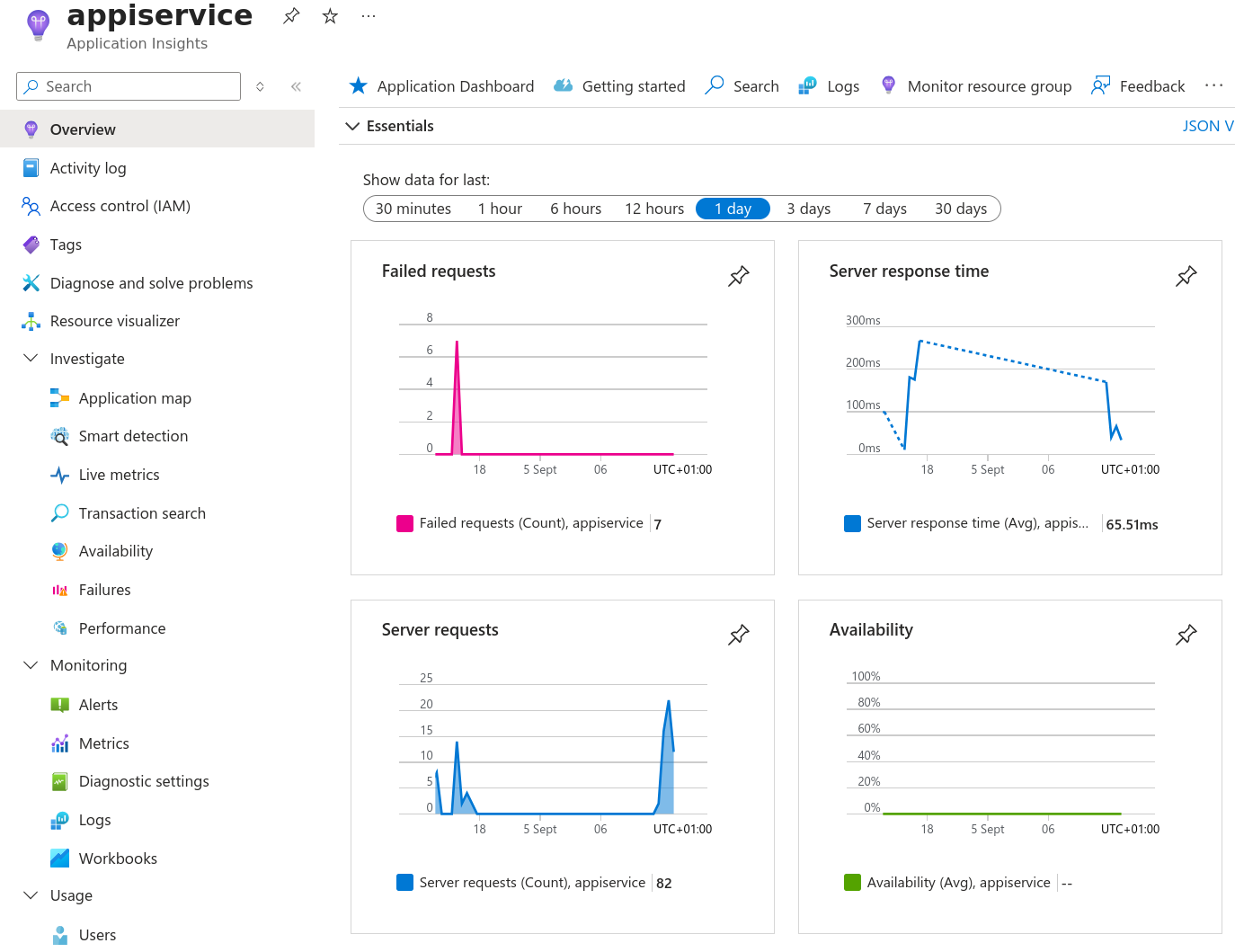

This page presents an ‘Overview’ of failed logins, response time and number of requests served.
There are a number of other data views available:

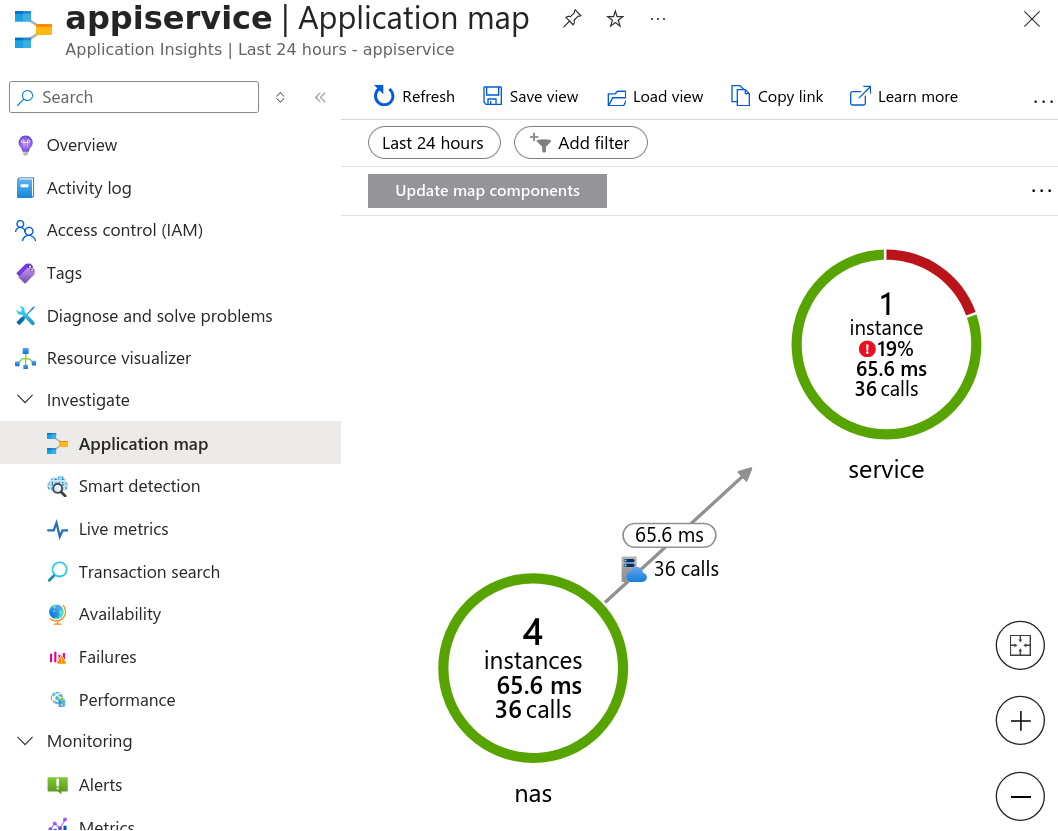

- Service Map (navigate via )
Provides a top down view of how the service is functioning, what it talks to and how long it takes. If a link has errors, it will show up colorized in red as somewhere to begin investigating problems if they occur. image::howto/quickstart/logs-map.png[Examining the map overview of service performance,width=640]
NoteThis is particularly useful for eduroam® and OpenRoaming™ participates - Requests (navigate via )

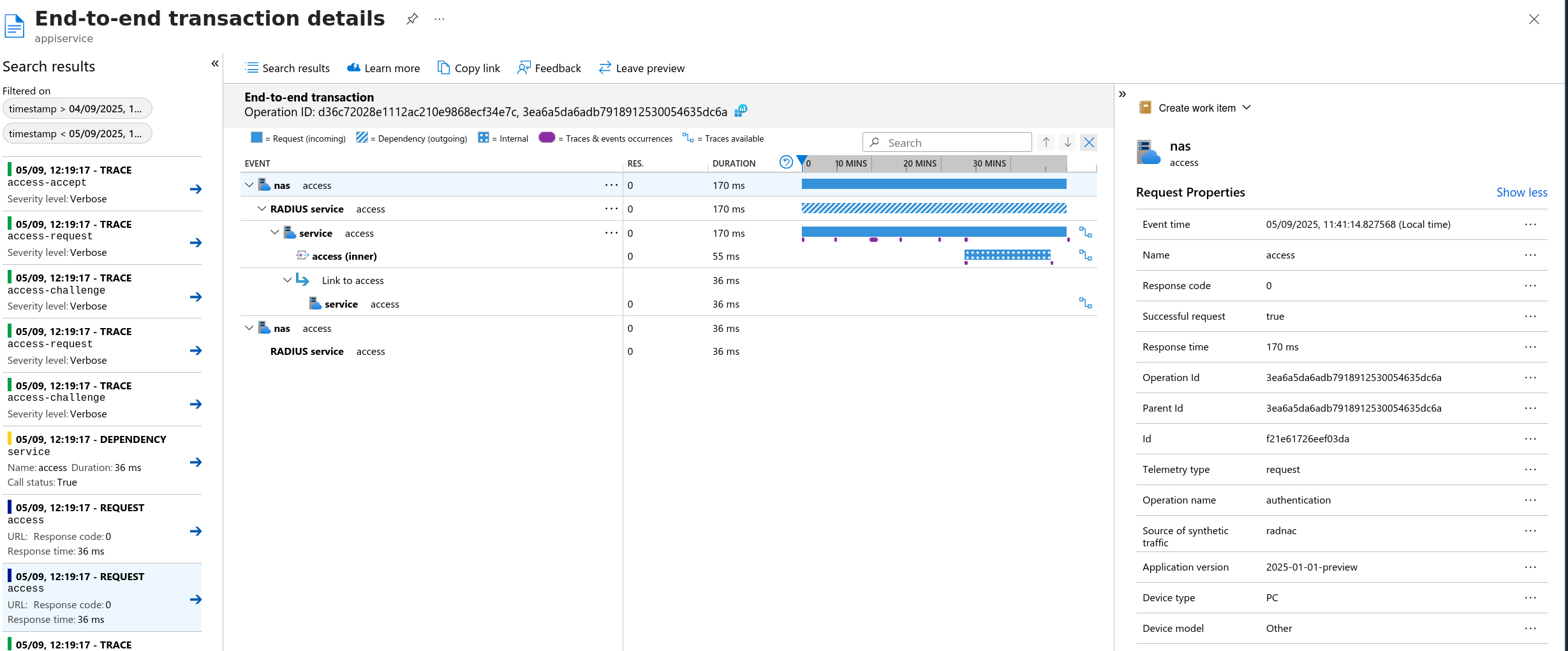

Fetch the data by either clicking on the button See all data in the last 24 hours or picking a timeframe from the top left. The result is a number of rows labeled ‘TRACE’ (green) represents every packet between your wireless equipment and RADNAC and ‘REQUEST’ (blue) corresponds to each authentication, clicking on the latter shows an overview of how long it took and how the authentication took place
A summary of what you are seeing:
- Purple Dots
Represent individual packets received and sent by the service. For when they appear on the ‘inner’ access requests these are the embedded contents that make up the inner request.
- Opaque Blue Section
The duration of the entire request made up of a sequence of two (usually one request and one response) or more packets.
- Partially Opaque Blue Section
The duration of the virtual request; same as the main request but associated with either the devices (clients and proxies) involved or the embedded inner request wrapped by the main request.
- Arrows
This shows which latter (and former) requests are associated with this request. This means you can determine which EAP-(T)TLS sessions TLS session resumption was coupled to as well as which accounting (usage) sessions were created based on which authentication.
- Failures (navigate via )
View showing the errors (failed authentications) and allowing you to drill down into the issue.
- User Logins (navigate via )
Explore how each one of your users is connecting, use the filter ‘Authenticated user Id’ to search for a given user (for example ‘
Authenticated user Id == bob’).- Sessions (navigate via )
Explore how long connections were maintained.
